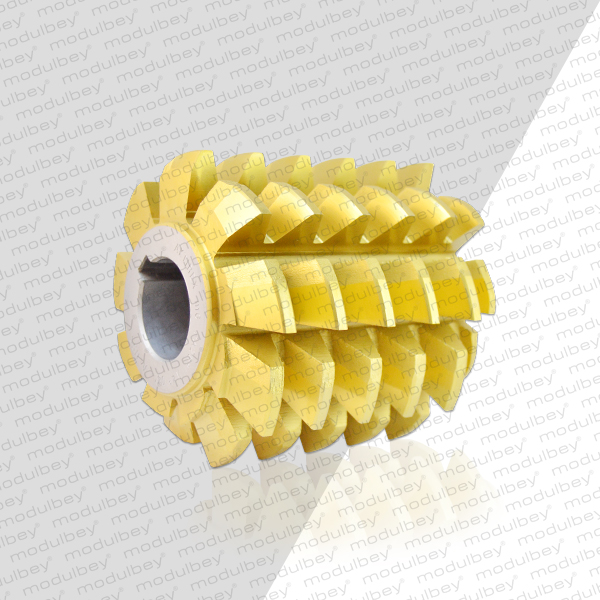

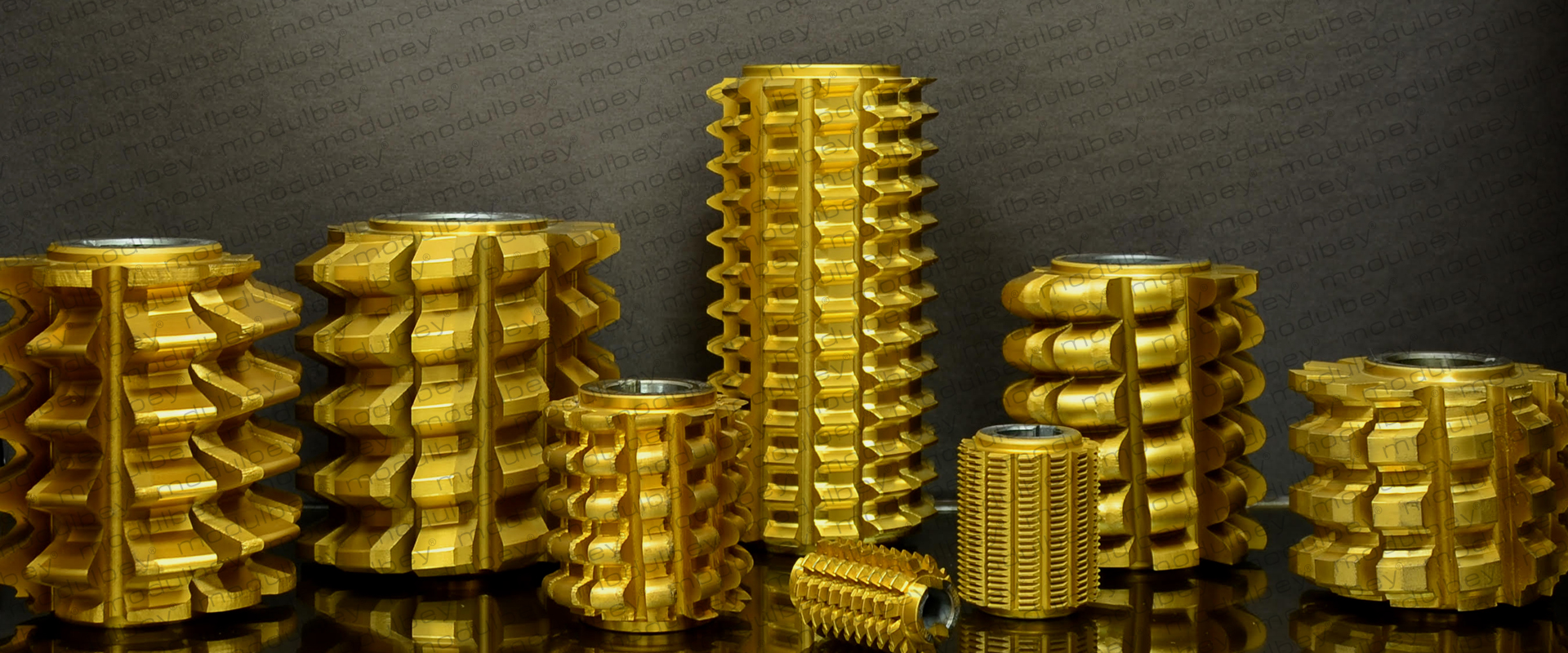

Gear Hobs
Module : 0,1 – 40
DP : 120 – 0,7
PA : 14°30′ – 15° – 17°30′ – 20° – 22°30′ – 25° – 27° – 30° – 45°
Spline Hobs
Spline Hobs are supplied for generating parallel or angular splines, straight or helical splineswith profile modifications like semi topping, undercutting, shoulder clearance, etc.
Parallel Spline Hobs with or without lugs, semi‐topping and shoulder clearance.
- DIN 5472
- DIN 5462
- DIN 5463
- DIN 5464
- DIN 5482

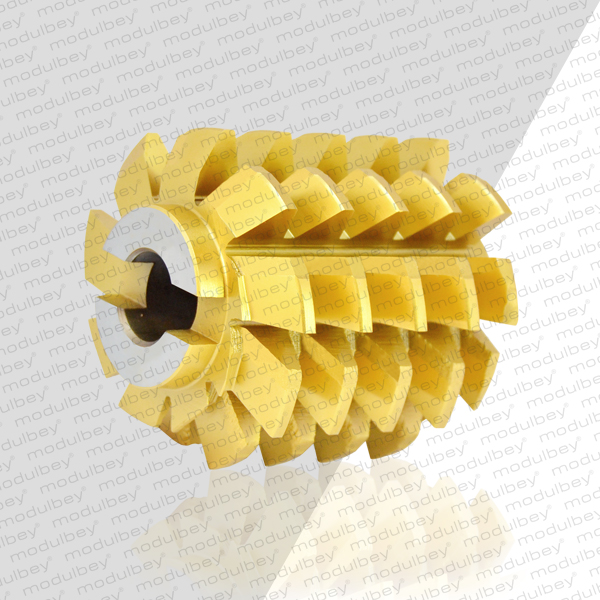

Worm Gear Hobs
Worm Gear Hobs are stocked according to current needs.
Between 1-8 modules and in various DP sizes.
Also with chamfering or pre-grinding options.

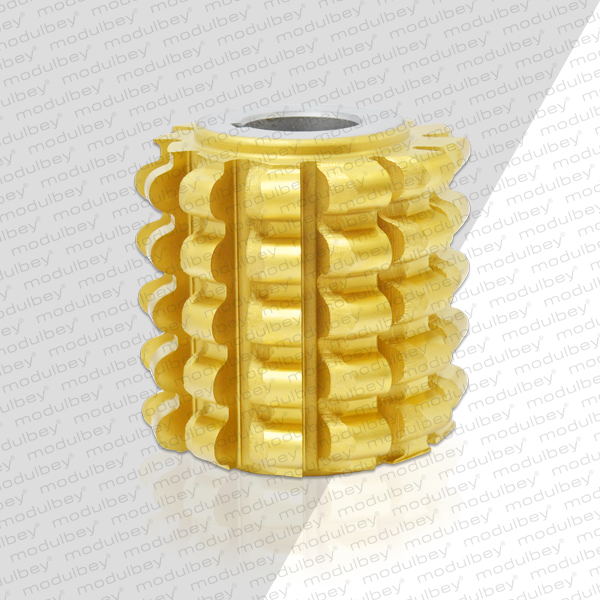

Sprocket Hobs
All standards of chain gear hobbing are available in stock.
| Sprocket | Pitch | r |
| 6×4 | 6 | 4 |
| 1/4″ | 6,35 | 3,3 |
| 5/16″ | 7,937 | 5 |
| 8×5 | 8 | 5 |
| 3/8″ | 9,525 | 5,08 |
| 3/8″ | 9,525 | 6 |
| 3/8″ | 9,525 | 6,35 |
| 1/2″ | 12,7 | 7,75 |
| 1/2″ | 12,7 | 7,77 |
| 1/2″ | 12,7 | 7,95 |
| 1/2″ | 12,7 | 8,51 |
| 5/8″ | 15,875 | 10,16 |
| 3/4″ | 19,05 | 11,91 |
| 3/4″ | 19,05 | 12,07 |
| 1″ | 25,4 | 15,88 |
| 1-1/4″ | 31,75 | 19,05 |
| 1-1/2″ | 38,1 | 22,23 |
| 1-1/2″ | 38,1 | 25,4 |
| 1-3/4″ | 44,45 | 25,4 |
| 1-3/4″ | 44,45 | 27,94 |
| 2″ | 50,08 | 28,58 |
| 2″ | 50,08 | 29,21 |
| 2-1/2″ | 63,5 | 39,68 |
| 3″ | 76,2 | 48,25 |
| 3-1/2″ | 88,9 | 53,98 |
| 4″ | 101,6 | 63,5 |

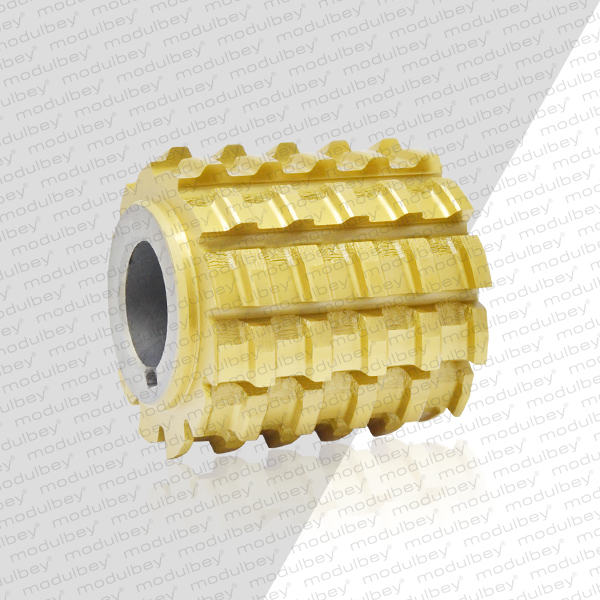

Timing Pulley Hobs
All standards of timing belt hobbing are available in stock. With profile options suitable for different tooth numbers (z).
| MXL (2,032) | AT5 | 3M | S2M | RP2M |
| T2.5 | AT10 | 5M | S3M | RP3M |
| T5 | AT20 | 8M | S4,5M | RP5M |
| XL (5.080) | 14M | S5M | RP8M | |
| T8 | 20M | S8M | RP14M | |
| L (9.525) | S14M | |||
| T10 | ||||
| H (12.70) | ||||
| T20 | ||||
| XH (22,225) | ||||
| XXH (31,75) |
