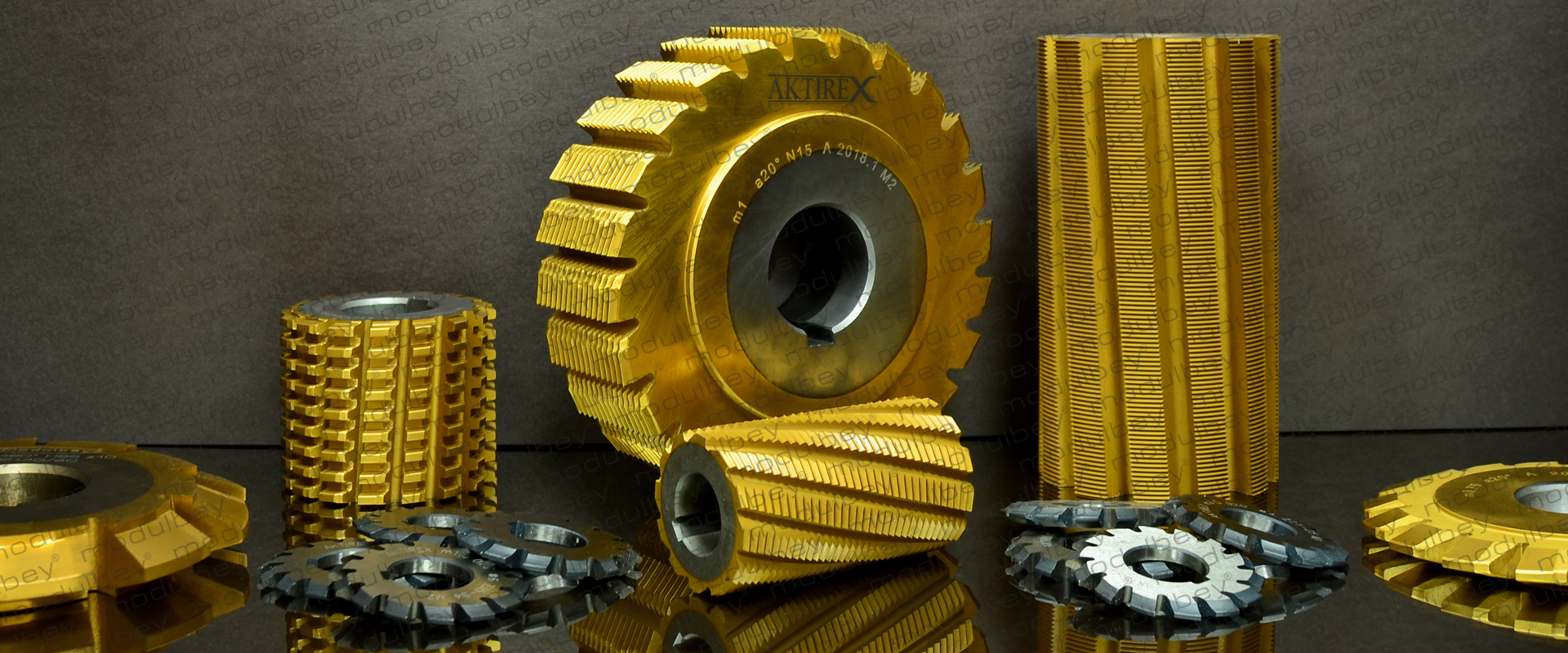

Gear Milling Cutter

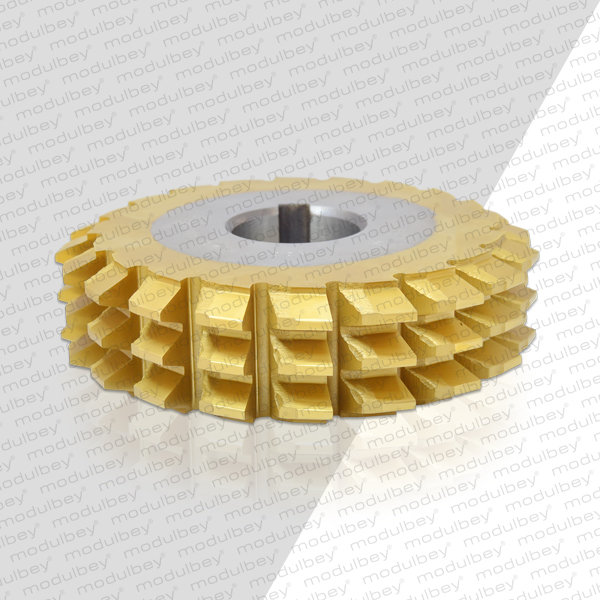

Rack Type Cutter — Rack Type Milling Cutter

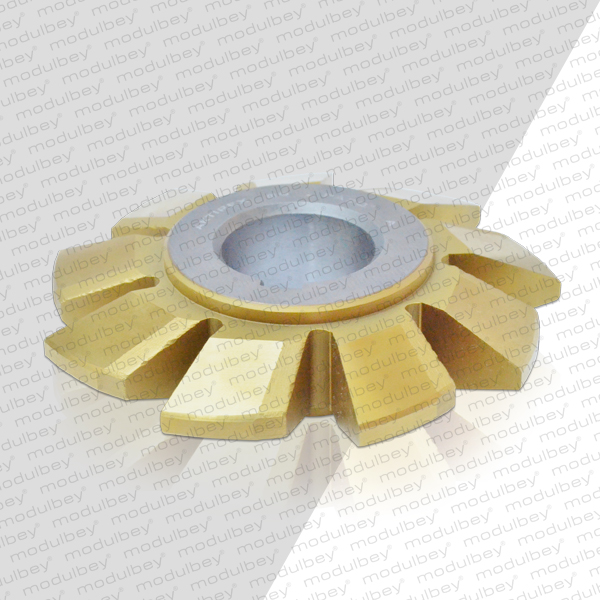

Rack Type Milling Cutter

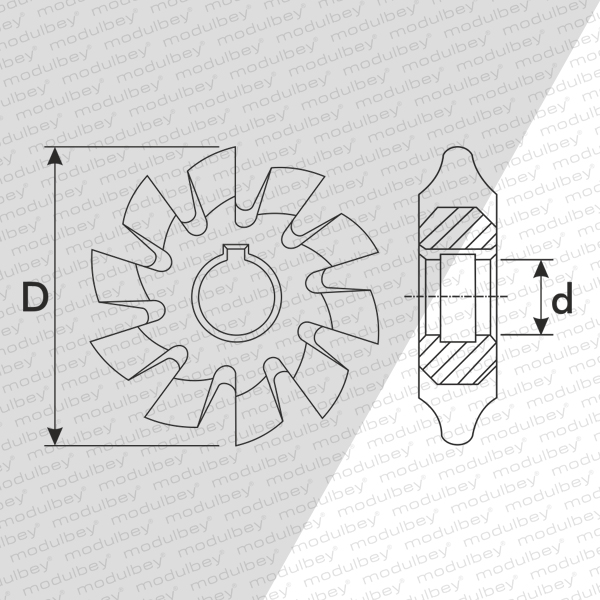

M	PA°	Z	Groove	Chamfering	D	d	Coating	Metarial
1	5°/35°	1	–	–	125	32	–	HSS
1	20°	1	–	–	120	32	–	HSS
1	20°	1	–	Chamfering	125	32	Titan	HSS
1	20°	15	Straight	–	160	40	Titan	HSS

1.25	20°	1	–	–	115	40	–	HSS
1.25	20°	1	–	–	117	32	–	HSS
1.25	20°	1	–	Chamfering	125	32	–	HSS
1.25	20°	1	–	–	130	27	–	HSS
1.25	20°	8	Helix	–	96	32	–	HSS
1.25	20°	8	Helix	–	108	32	–	HSS

1.5	5°/35°	1	–	–	127	32	–	HSS
1.5	20°	1	–	–	90	32	Titan	HSS
1.5	20°	1	–	–	115	40	–	HSS
1.5	20°	1	–	–	120	32	–	HSS
1.5	20°	1	–	–	125	32	Titan	HSS
1.5	20°	1	–	Chamfering	125	32	–	HSS
1.5	20°	1	–	–	140	40	–	HSS
1.5	20°	1	–	Chamfering	200	40	Titan	HSS
1.5	20°	23	Helix	–	70	27	–	HSS
1.5	20°	24	Straight	–	80	32	–	HSS
1.5	20°	10	Straight	–	160	40	Titan	HSS

1.75	20°	1	–	–	115	40	–	HSS
1.75	20°	1	–	–	120	27	–	HSS
1.75	20°	1	–	–	120	32	–	HSS
1.75	20°	1	–	Chamfering	120	32	–	HSS
1.75	20°	1	–	–	130	27	–	HSS

2	5°/35°	1	–	–	140	32	–	HSS
2	20°	1	–	–	90	32	Titan	HSS
2	20°	1	–	–	100	32	–	HSS
2	20°	1	–	–	120	32	–	HSS
2	20°	1	–	Chamfering	125	32	–	HSS
2	20°	1	–	Chamfering	125	32	Titan	HSS
2	20°	1	–	–	140	40	–	HSS
2	20°	1	–	–	150	40	Titan	HSS
2	20°	4	Straight	–	110	40	–	HSS
2	20°	4	Helix	–	140	32	–	HSS
2	20°	8	Helix	–	140	32	–	HSS
2	20°	8	Straight	–	160	40	Titan	HSS
2	20°	10	Straight	–	71	32	–	HSS

2.25	20°	1	–	Chamfering	73	27	–	HSS
2.25	20°	1	–	–	120	32	–
2.25	20°	1	–	Chamfering	125	32	Titan	HSS
2.25	20°	1	–	–	130	27	–	HSS
								HSS
2.5	5°/35°	1	–	–	130	32	–	HSS
2.5	5°/35°	1	–	–	140	32	–	HSS
2.5	20°	1	–	–	125	32	–	HSS
2.5	20°	1	–	–	125	32	Titan	HSS
2.5	20°	1	–	Chamfering	125	32	–	HSS
2.5	20°	1	–	–	130	32	–	HSS
2.5	20°	1	–	–	145	32	–	HSS
2.5	20°	1	–	–	150	40	Titan	HSS
2.5	20°	1	–	Chamfering	200	40	Titan	HSS
2.5	20°	4	Straight	–	140	32	–	HSS
2.5	20°	5	Straight	–	125	32	Titan	HSS
2.5	20°	6	Straight	–	160	40	Titan	HSS

2.75	20°	1	–	–	120	32	–	HSS
2.75	20°	1	–	–	125	32	–	HSS
2.75	20°	1	–	–	130	27	–	HSS
								HSS
3	5°/35°	1	–	–	110	32	–	HSS
3	5°/35°	1	–	–	140	32	–	HSS
3	20°	1	–	–	90	32	Titan	HSS
3	20°	1	–	Chamfering	120	40	–	HSS
3	20°	1	–	–	125	32	Titan	HSS
3	20°	1	–	Chamfering	125	32	Titan	HSS
3	20°	1	–	–	130	40	–	HSS
3	20°	1	–	Chamfering	130	40	–	HSS
3	20°	1	–	–	140	32	–	HSS
3	20°	1	–	–	150	40	Titan	HSS
3	20°	1	–	Chamfering	200	40	Titan	HSS
3	20°	3	Straight	–	110	40	Titan	HSS

3.25	20°	1	–	–	120	32	–	HSS
3.25	20°	1	–	Chamfering	120	40	–	HSS
3.25	20°	1	–	–	125	32	Titan	HSS
3.25	20°	1	–	Chamfering	125	32	–	HSS
3.25	20°	1	–	Chamfering	125	32	Titan	HSS

3.5	5°/35°	1	–	–	140	32	–	HSS
3.5	20°	1	–	–	110	32	–	HSS
3.5	20°	1	–	Chamfering	120	32	–	HSS
3.5	20°	1	–	–	125	32	Titan	HSS
3.5	20°	1	–	Chamfering	125	32	–	HSS
3.5	20°	1	–	Chamfering	125	32	Titan	HSS
3.5	20°	1	–	Chamfering	200	40	Titan	HSS
3.5	20°	5	Straight	–	160	40	Titan	HSS

3.75	20°	1	–	–	120	32	–	HSS
3.75	20°	1	–	–	125	32	Titan	HSS
3.75	20°	1	–	Chamfering	125	32	–	HSS
3.75	20°	1	–	Chamfering	125	32	Titan	HSS

4	5°/35°	1	–	–	137	32	–	HSS
4	20°	1	–	–	90	32	Titan	HSS
4	20°	1	–	–	100	32	–	HSS
4	20°	1	–	–	120	27	–	HSS
4	20°	1	–	–	125	32	Titan	HSS
4	20°	1	–	Chamfering	125	32	–	HSS
4	20°	1	–	Chamfering	125	32	Titan	HSS
4	20°	1	–	–	130	40	–	HSS
4	20°	1	–	–	150	40	Titan	HSS
4	20°	1	–	Chamfering	200	40	Titan	HSS
4	20°	3	Straight	–	160	40	Titan	HSS
4	20°	5	Straight	–	170	40	–	HSS

4.25	20°	1	–	–	120	27	–	HSS

4.5	5°/35°	1	–	–	140	32	–	HSS
4.5	20°	1	–	–	90	32	Titan	HSS
4.5	20°	1	–	–	116	27	–	HSS
4.5	20°	1	–	–	120	32	–	HSS
4.5	20°	1	–	–	125	32	–	HSS
4.5	20°	1	–	–	125	32	Titan	HSS
4.5	20°	1	–	Chamfering	125	32	–	HSS
4.5	20°	1	–	–	130	27	–	HSS
4.5	20°	2	Straight	–	130	32	–	HSS
4.5	20°	3	Straight	–	160	40	–	HSS
4.5	20°	5	Straight	–	100	40	–	HSS

5	5°/35°	1	–	–	127	32	–	HSS
5	5°/35°	1	–	–	140	40	–	HSS
5	20°	1	–	–	90	32	Titan	HSS
5	20°	1	–	–	115	27	–	HSS
5	20°	1	–	–	120	32	–	HSS
5	20°	1	–	–	125	27	–	HSS
5	20°	1	–	–	125	32	–	HSS
5	20°	1	–	–	125	32	Titan	HSS
5	20°	1	–	Chamfering	125	32	–	HSS
5	20°	1	–	Chamfering	125	32	Titan	HSS
5	20°	1	–	–	130	40	–	HSS
5	20°	1	–	–	150	40	Titan	HSS
5	20°	3	Straight	–	160	40	–	HSS

5.25	20°	1	–	–	125	32	–	HSS
5.25	20°	1	–	Chamfering	125	32	–	HSS

5.5	5°/35°	1	–	–	138	40	–	HSS
5.5	20°	1	–	–	115	32	–	HSS
5.5	20°	1	–	–	125	32	–	HSS
5.5	20°	1	–	Chamfering	125	32	–	HSS
5.5	20°	1	–	Chamfering	125	32	Titan	HSS
5.5	20°	1	–	–	128	32	–	HSS

5.54	15°	1	–	Chamfering	125	32	–	HSS

6	5°/35°	1	–	–	130	32	–	HSS
6	5°/35°	1	–	–	140	40	–	HSS
6	20°	1	–	–	125	32	–	HSS
6	20°	1	–	–	125	40	–	HSS
6	20°	1	–	–	125	40	Titan	HSS
6	20°	1	–	Chamfering	125	32	–	HSS
6	20°	1	–	Chamfering	125	32	Titan	HSS
6	20°	1	–	–	128	27	–	HSS
6	20°	1	–	–	140	32	–	HSS
6	20°	1	–	–	140	40	Titan	HSS
6	20°	1	–	–	150	40	–	HSS
6	20°	1	–	–	160	40	Titan	HSS
6	20°	1	–	–	170	40	–	HSS
6	20°	1	–	–	180	40	–	HSS
6	20°	1	–	–	180	40	Titan	HSS
6	20°	1	–	–	180	50	–	HSS
6	20°	2	Straight	–	150	40	–	HSS
6	20°	2	Straight	–	160	40	–	HSS
6	20°	3	Straight	–	170	40	–	HSS
6	20°	5 (SET)	Straight	–	180	40	–	HSS

6.5	20°	1	–	–	110	32	–	HSS

7	20°	1	–	–	125	40	Titan	HSS
7	20°	1	–	–	130	32	–
7	20°	1	–	–	160	40	Titan	HSS
7	20°	1	–	–	170	40	Titan	HSS
7	20°	3	Straight	–	180	40	–	HSS

7.5	20°	1	–	–	120	27	–	HSS

8	5°/35°	1	–	–	137	40	–	HSS
8	10°/30°	1	–	–	137	40	–	HSS
8	20°	1	–	–	105	32	–	HSS
8	20°	1	–	–	125	40	Titan	HSS
8	20°	1	–	–	127	32	–	HSS
8	20°	1	–	–	130	32	–	HSS
8	20°	1	–	–	135	32	Titan	HSS
8	20°	1	–	–	140	40	–	HSS
8	20°	1	–	–	160	40	–	HSS
8	20°	1	–	–	160	40	Titan	HSS
8	20°	2	Straight	–	180	40	–	HSS
8	20°	1	–	–	180	40	Titan	HSS
								HSS
9	20°	1	–	–	122	32	–	HSS
9	20°	1	–	–	140	40	Titan	HSS

10	20°	1	–	–	109	32	–	HSS
10	20°	1	–	–	116	32	–	HSS
10	20°	1	–	–	136	40	–	HSS
10	20°	1	–	–	150	40	Titan	HSS

12	20°	1	–	–	138	40	–	HSS
12	20°	1	–	–	150	40	–	HSS
12	20°	1	–	–	200	40	Titan	HSS

14	20°	1	–	–	125	40	Titan	HSS

16	20°	1	–	–	225	40	Titan	HSS

20	20°	1	–	–	225	40	Titan	HSS

26	20°	1	–	–	260	60	Titan	HSS

27	20°	1	–	–	270	60	Titan	HSS

28	20°	1	–	–	280	60	Titan	HSS

29	20°	1	–	–	290	60	Titan	HSS

30	20°	1	–	–	300	60	Titan	HSS

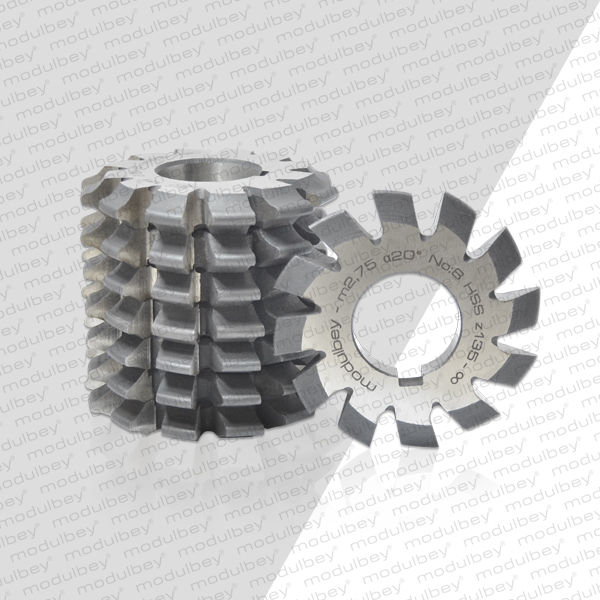

Gear Milling Cutter Set – Module

Module	PA°	D	d	Metarial
1	20°	50	16	HSS
1.25	20°	50	16	HSS
1.5	20°	55	22	HSS
1.75	20°	55	22	HSS
2	20°	63	22	HSS
2.25	20°	63	22	HSS
2.5	20°	70	22	HSS
2.75	20°	70	22	HSS
3	20°	80	27	HSS
3.25	20°	80	27	HSS
3.5	20°	80	27	HSS
3.75	20°	80	27	HSS
4	20°	90	27	HSS
4.25	20°	90	27	HSS
4.5	20°	90	27	HSS
5	20°	100	27	HSS
5.5	20°	100	27	HSS
6	20°	110	32	HSS
6.5	20°	110	32	HSS
7	20°	110	32	HSS
8	20°	125	32	HSS
9	20°	125	32	HSS
10	20°	140	40	HSS
11	20°	140	40	HSS
12	20°	160	40	HSS
14	20°	160	40	HSS
16	20°	180	50	HSS

Gear Milling Cutter Set – Sprocket

Sprocket (Inch)	Pitch (mm)	Role	D	d	Metarial
1/4″	6.35	3.3	63	22	HSS
5/16″	8	5	63	22	HSS
3/8″	9.525	5.08	71	22	HSS
3/8″	9.525	6	71	22	HSS
3/8″	9.525	6.35	71	22	HSS
1/2″	12.7	7.75	71	22	HSS
1/2″	12.7	7.77	71	22	HSS
1/2″	12.7	7.95	71	22	HSS
1/2″	12.7	8.51	71	22	HSS
5/8″	15.875	10.16	90	27	HSS
3/4″	19.05	11.91	90	27	HSS
3/4″	19.05	12.07	90	27	HSS
1″	25.4	15.88	100	27	HSS
1-1/4″	31.75	19.05	112	32	HSS

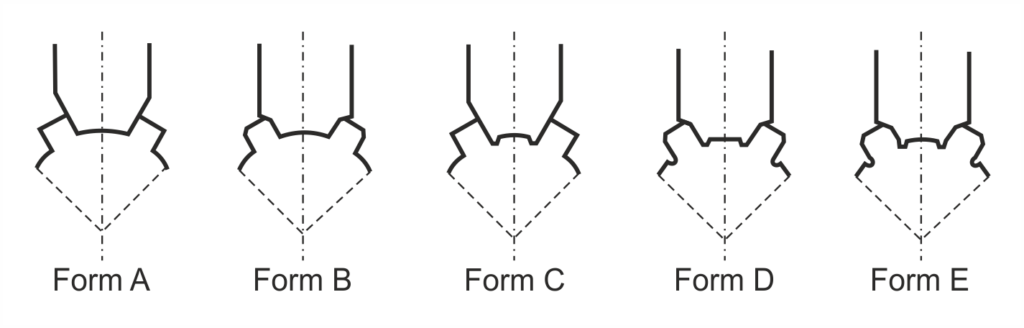

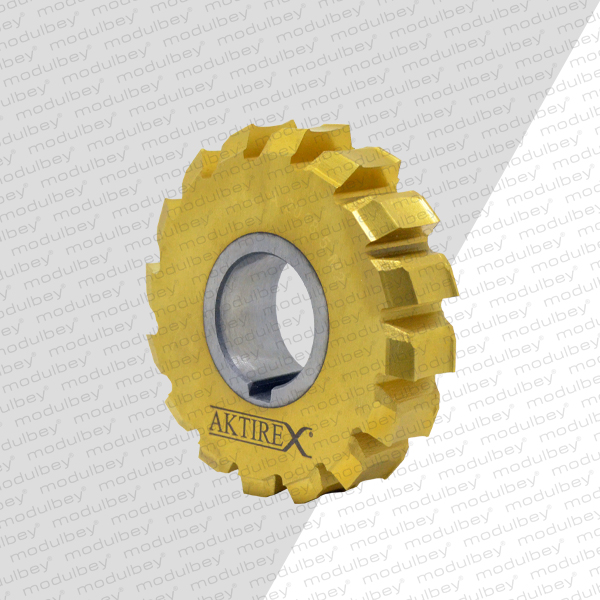

Spline Type Gear Milling Cutter

DIN 5462	N	D	L	d
23x26x6	6	63	10	22
26x30x6	6	63	12	22
28x32x6	6	63	13	22
32x36x6	8	63	11	22
36x40x7	8	63	12	22
42x46x8	8	63	13	22
46x50x9	8	70	14	27
52x58x10	8	70	16	27
56x62x10	8	70	18	27
62x68x12	8	70	18	27
72x78x12	10	70	16	27
82x88x12	10	80	19	32
92x98x14	10	80	20	32

DIN 5463	N	D	L	d
16x20x4	6	56	8	22
18x22x5	6	56	8	22
21x25x5	6	63	9	22
23x28x6	6	63	10	22
26x32x6	6	63	12	22
28x43x7	6	63	13	22
32x38x6	8	63	11	22
36x42x7	8	63	12	22
42x48x8	8	63	13	22
46x54x9	8	70	14	27
52x60x10	8	70	16	27
56x65x10	8	70	18	27
62x72x12	8	70	18	27
72x82x12	10	70	16	27

DIN 5464	N	D	L	d
16x20x2,5	10	63	5	27
18x23x23	10	63	5	27
21x26x3	10	63	7	27
23x29x4	10	63	7	27
26x32x4	10	63	8	27
28x35x4	10	63	8	27
32x40x5	10	70	10	27
36x45x5	10	70	12	27
42x52x6	10	70	13	27
46x56x7	10	70	13	27
52x60x5	16	80	9	32
56x65x5	16	80	10	32
62x72x6	16	80	11	32
72x82x7	16	80	11	32
82x92x6	20	90	11	32
92x102x7	20	90	12	32

DIN 5471	N	D	L	d
16x20x6	4	63	12	22
18x22x6	4	63	14	22
21x25x8	4	63	14	22
24x28x8	4	63	16	22
28x32x10	4	63	17	22
32x38x10	4	70	22	27
36x42x12	4	70	23	27
42x48x12	4	70	27	27
46x52x14	4	70	28	27
52x60x14	4	80	34	32
58x65x16	4	80	38	32
62x70x16	4	80	40	32
68x78x16	4	80	45	32

DIN 5472	N	D	L	d
21x25x5	6	63	9	22
23x28x6	6	63	10	22
26x32x6	6	63	12	22
28x34x7	6	63	13	22
32x38x8	6	70	14	27
36x42x48	6	70	16	27
42x48x10	6	70	17	27
46x52x12	6	80	18	32
52x60x14	6	80	20	32
58x65x14	6	80	22	32
62x70x16	6	80	23	32
68x78x16	6	90	27	32
72x82x16	6	90	29	32
78x90x16	6	90	33	32
82x95x16	6	90	36	32
88x100x16	6	90	38	32
92x105x20	6	90	38	32
98x110x20	6	90	40	32
